Voron Trident 300 Build: Part 2

Posted on April 05, 2025

Day 2 of the Trident build! I got the basic extrusions together to form a frame and starting printing my first ABS on the Ender.

My main frustrations today were to do with LDO differences to the regular Voron instructions:

• T-nut bars should be added whilst building the frame (guess who didn't do this?)
• 250 vs 300 instructions and exceptions are pretty hard to follow

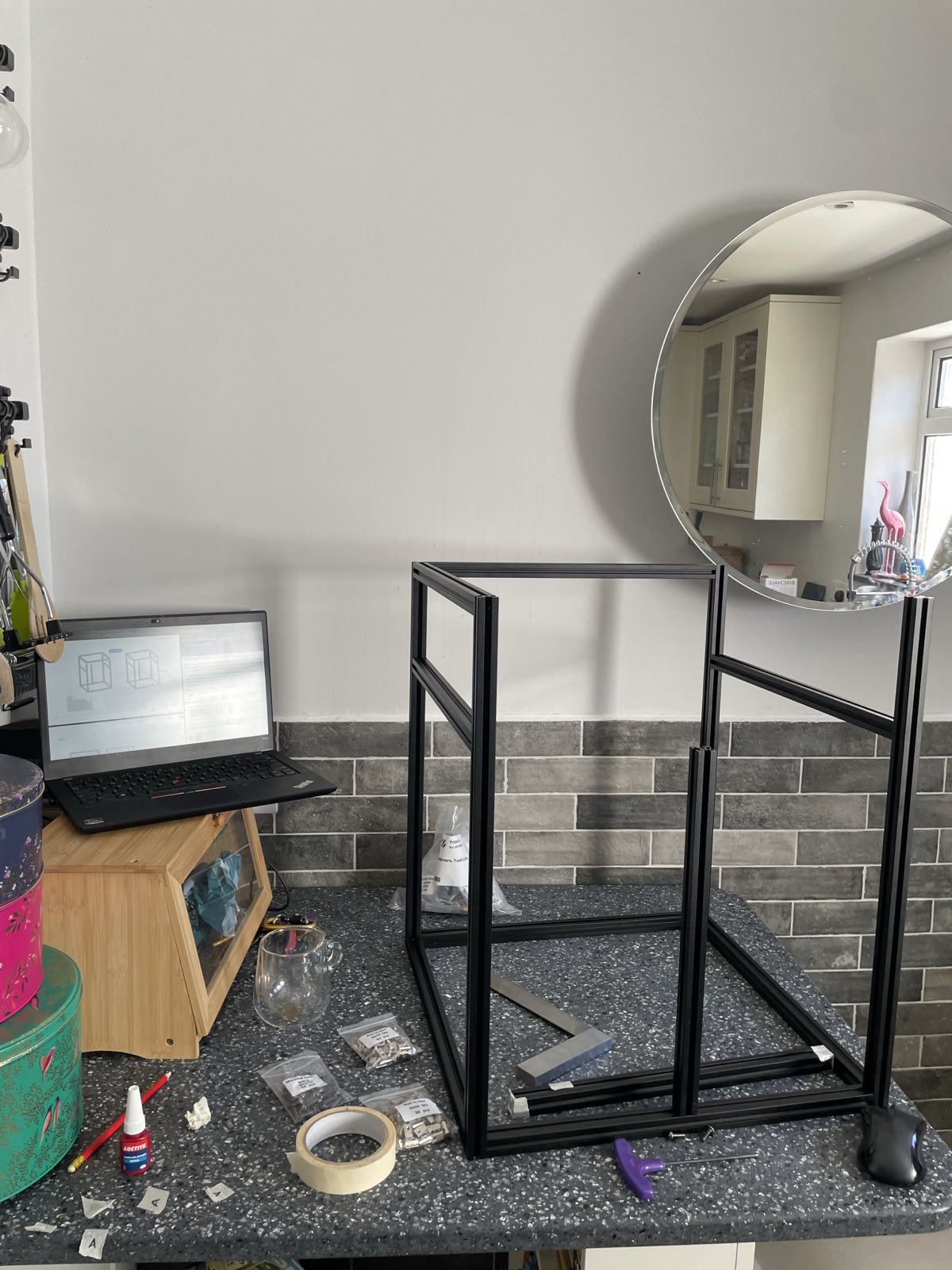

I got the whole thing squared before getting some help from Jon on the Voron Discord:

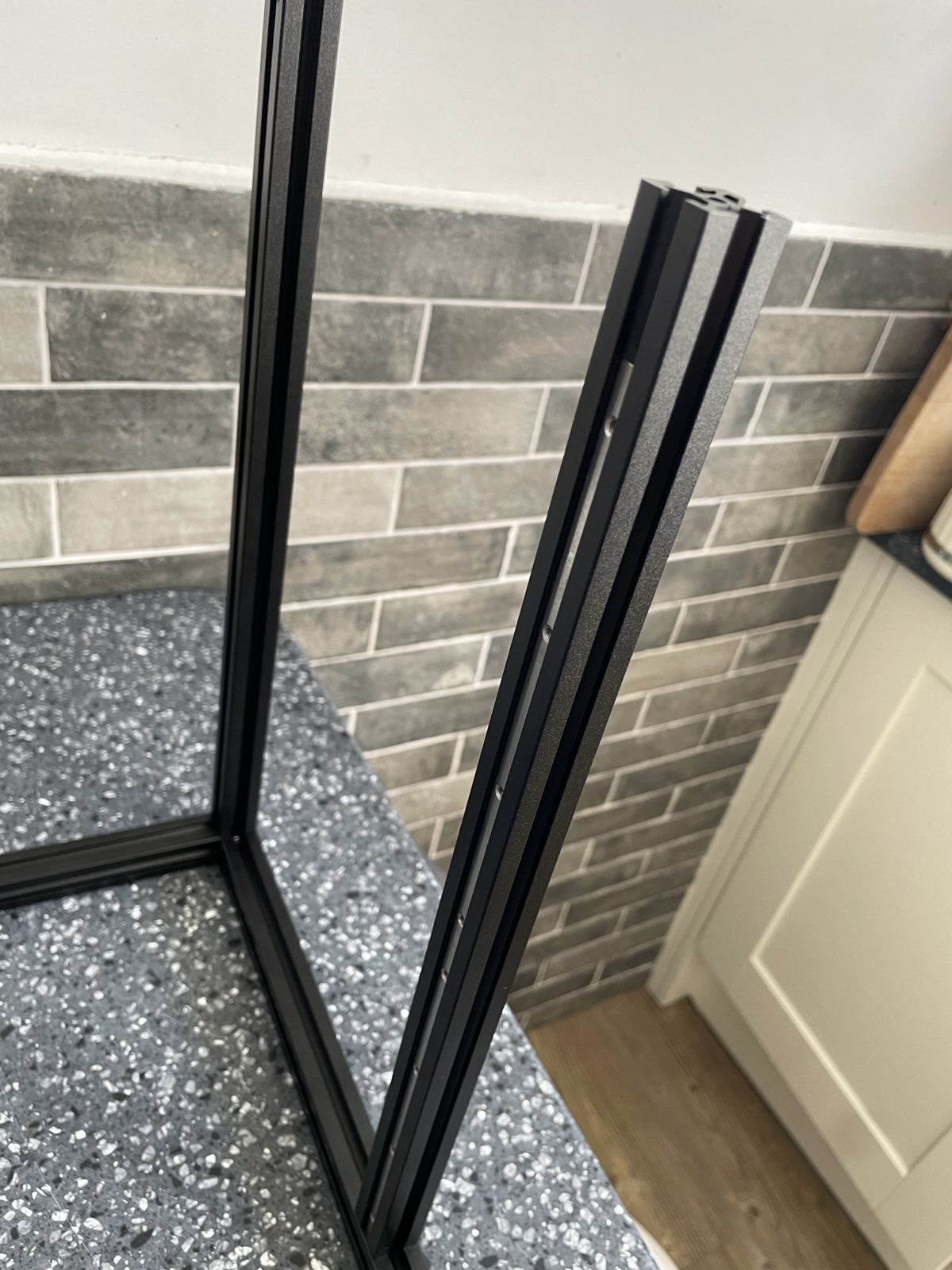

Added the T-bars:

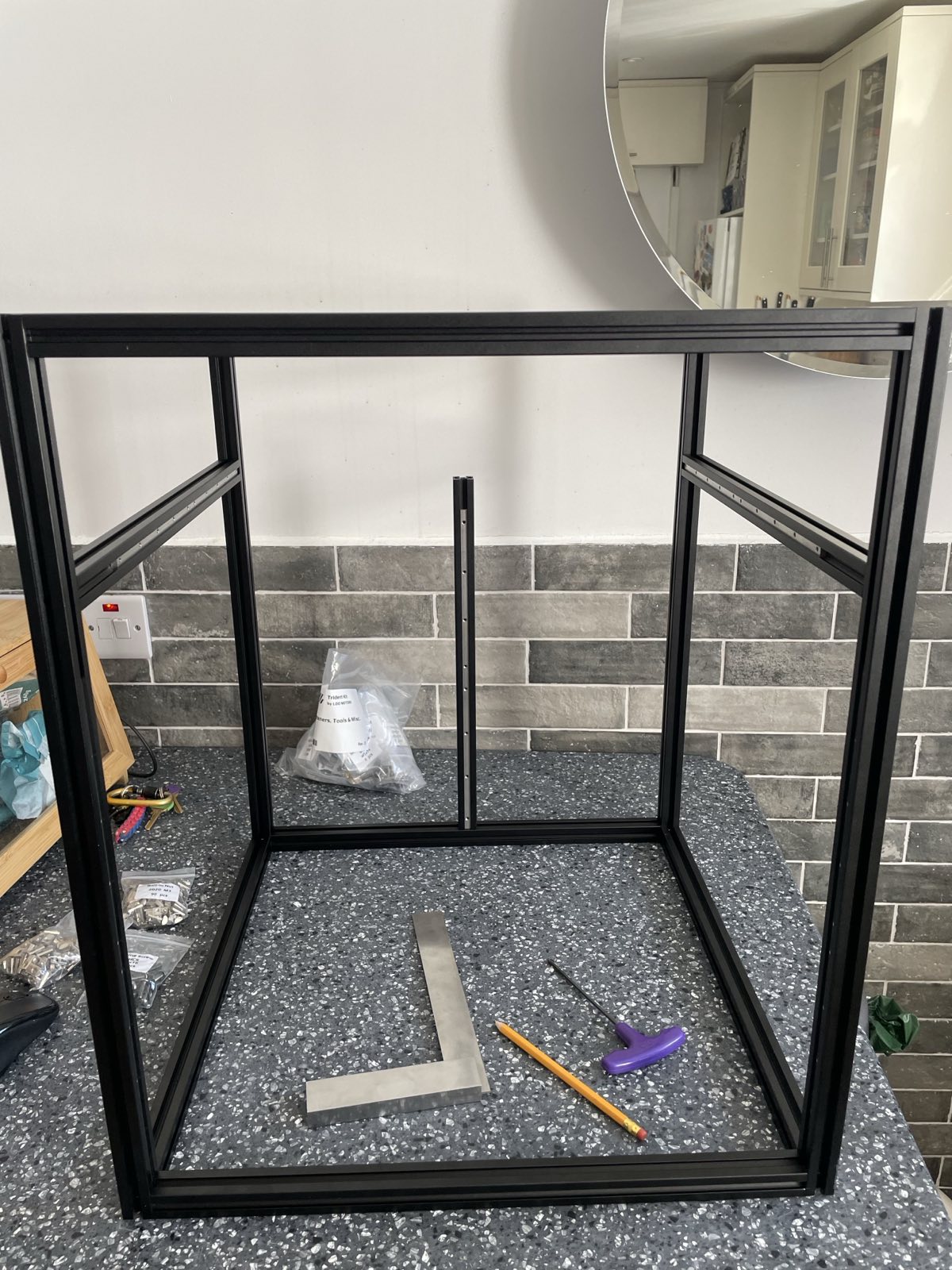

Resquared, and here's the final result:

As for printing the parts, I needed to:

• Get over my fear of ABS
• Zip that ventilated enclosure up tight
• Wear a respirator just in case
• Let my printer go slightly above its existing 100° bed and 260° extruder limits
• Stop my printer from going cold after a timeout ('heat soaking', or warming up your chamber is supposed to be useful for ABS)
• Do test prints like pressure advance and so on, and figure out bed adhesion.
